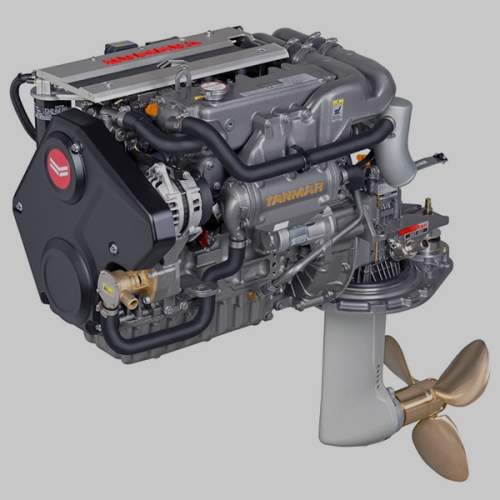

SALE! Yanmar 4JH45 Marine Diesel Engine 45HP – NEW
Yanmar
4 Cylinder, 2.19-liter diesel engine, Naturally Aspirated, Gears – KM35P / KM35A2 / KM4A1 / ZF25 ZF30M, Sail Drive – SD60
3,819.47€
5,645.31€
New Yanmar 4JH45 Inboard Diesel Engine 4 Cylinder, 2.19-liter diesel engine, Naturally Aspirated, Gears – KM35P / KM35A2 / KM4A1 / ZF25 ZF30M, Sail Drive – SD60. YANMAR engines are well known as some of the longest lasting and most reliable on the market. Thanks to the use of common rail technology, our new line of Tier 3 compliant engines now offer even better performance with higher torque, less noise, little to no smoke and increased fuel economy. Our engines are simply the best power package available for new vessels and re-power applications.
Specifications:
Rated Output: 33.1 kW / 45 mhp
Rated Speed: 3000 rpm
Displacement: 2.19 L / 131 cu. in
No. of cylinders: 4 cylinders
Cylinder Bore x Stroke: 88 mm x 90 mm / 3.46 in x 3.54 in
Combustion system: Direct Injection, Bosch Common Rail System
Aspiration: Natural
Alternator: 12V - 125A
Dry weight without gear: 220 kg / 485 lbs
Dimensions: 870 mm x 589 mm x 627 mm
Controls: Mechanical (optional - VC10 system)
Certifications: RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM35P marine gear
(Dimensions may vary with other gears/elbow)
Package Includes:
- Yanmar 4JH45 Engine
- Gearbox: KM35P / KM35A2 / KM4A1
- Exhaust mixing elbow [L-type]
- Alternator 12V – 125A
- C35 panel
- Flexible mounts
- Mechanical throttle sensor
- Fuel pre-filter with water separator
- Fresh water expansion tank
- Belt safety cover
- Extension wire harness 5m
- NMEA2000 Engine monitoring system
- On-board spare parts kit (Oil filter, fuel filter, impeller & O-ring)
Optional Accessories
- High-riser mixing elbow [instead of L-elbow]
- Secondary alternator 12V – 125A or 24V – 60A
- C35 panel
- Extension harness [3m, 5m, 10m]
- Second station
- TFX Sidemount control head
- VC10 Vessel Control System
- NMEA2000 Engine monitoring system
- Semi 2-pole
- SOLAS including Certificate [factory fit only]
- Hot water kit with cocks
- Extension saildrive leg [75 mm]
- Propeller cone nut kit SD60
- On-board spare parts kit
- Availability: In Stock
- Model: 4JH45
-
