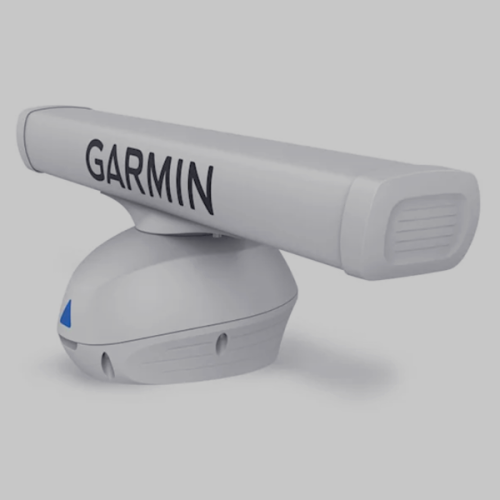

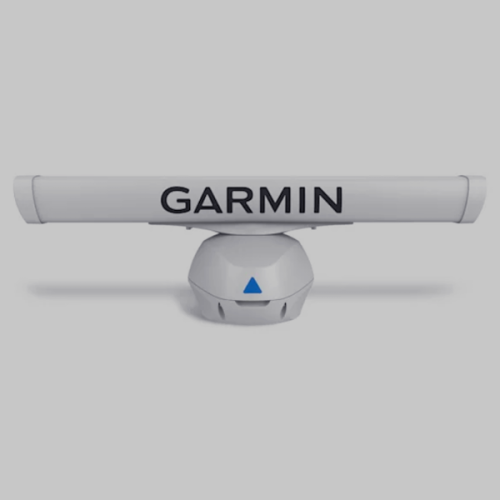

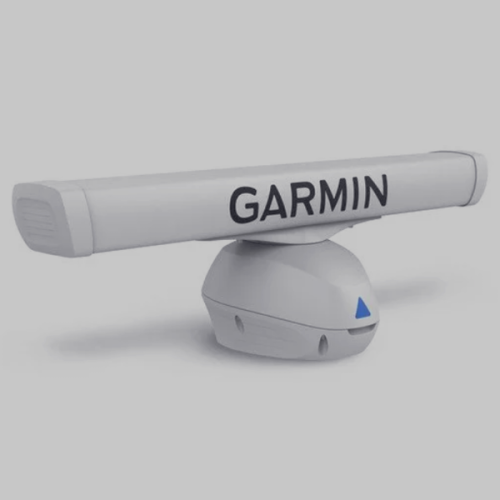

SALE! Garmin GMR Fantom 124 Open Array and Pedestal - NEW
Garmin
GMR Fantom 124 is our most powerful 4’ solid-state radar. It uses MotionScope technology to detect and highlight moving targets in different colors, which helps you avoid potential collisions, find flocks of birds and track weather.
$3,125.13
$5,011.10
Featuring 120 W of power, GMR Fantom 124 is our most powerful 4’ solid-state radar. It uses MotionScope technology to detect and highlight moving targets in different colors, which helps you avoid potential collisions, find flocks of birds and track weather. It includes Pulse Compression technology that provides high-resolution imaging and maximizes energy to help you detect and identify targets. It has a detection range of 20’ to 96 nautical miles.
You get excellent close- and long-range target detection from as close as 20’ to 96 nautical miles, even in fog or rain. The narrow horizontal beamwidth provides a high-resolution image, and the high antenna gain picks out weak targets at a distance. This radar paints a clear, concise image of the shoreline, other vessels and impending weather — right on your Garmin chartplotter. Get consistent target positions, excellent target separation that helps you distinguish large targets from small ones and adjustable rotation speed for fast screen updates.
OPEN-ARRAY RADAR WITH INCREDIBLE POWER
This open-array radar highlights moving targets in color and gives you excellent close- and long-range target detection — even in fog or rain.
o Know what’s coming. MotionScope™ technology shows targets in color as they move toward you or away.
o GMR Fantom brings the power. 120 watts of it, actually.
o Get high resolution without wasting energy, thanks to pulse compression.
o Add even more detail to your maps with radar overlay — even in a split-screen view.
SEE WHAT’S COMING
HIGH-POWERED RADAR
This 120-watt solid-state radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.
HIGH-RESOLUTION RADAR
The 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.
MOTIONSCOPE TECHNOLOGY
MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so you can navigate around other boats or severe weather - or toward fishing spots where birds feed at the surface.
INTUITIVE OPERATION
This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
SEE INCREDIBLE DETAIL ON THE WATER
TARGET SIZE
Adjust the size of objects on the radar image.
AUTO BIRD GAIN
Locate flocks of birds at the water’s surface where baitfish are also likely to be found.
ECHO TRAILS
A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.
DUAL RANGE
Single radar antenna is capable of providing split-screen images on your chartplotter for both close and long range.
DUAL-RADAR SUPPORT
Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.
DYNAMIC AUTO GAIN
Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.
DYNAMIC SEA FILTER
Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
RADAR OVERLAY
Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.
MARPA TARGET TRACKING
Mini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping you keep track of other vessels and avoid collisions.
GUARD ZONE
Set the safety zone, and receive an alarm when an object enters the zone.
VRM AND EBL
Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.
SPECIFICATIONS:
General
DIMENSION
Pedestal: 16.6" x 14.3" x 10.7"
Pedestal: 42.1 x 36.4 x 27.1 cm
Full assembly: 15.9" height x 51.8" diameter
Full assembly: 40.3 cm height x 131.4 cm diameter
WEIGHT
Array: 11.4 lb (5.2 kg)
Pedestal: 34.7 lb (15.7 kg)
WATERPROOF: IPX6
MAX WIND LOAD: 80kt
ANTENNA LENGTH: 48" (121.92 cm)
ROTATION SPEED (RPM): 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
BEAM WIDTH: 1.8° horizontal, 23° vertical
MAXIMUM RANGE: 96 nm
MINIMUM RANGE: 6 meters
RADAR TYPE: Open-Array
Electrical Features
POWER INPUT: 10-32 V DC
TRANSMIT POWER: 120 W
Radar Features
DUAL RANGE: Yes
OVERLAY: Yes
DUAL RADAR SUPPORT: Yes
AUTO BIRD GAIN: Yes
AUTO GAIN: Dynamic
MARPA TARGET TRACKING: yes (requires heading sensor, sold separately)
ECHO TRAILS: Yes
MOTIONSCOPE: Yes
PROGRAMMABLE ANTENNA PARKING: Yes
TARGET SIZE: Yes
SCAN AVERAGING: Yes
IN THE BOX
o GMR Fantom 124 antenna and pedestal
o Mounting hardware kit and template
o Right angle power cable (15 meters)
o Right angle network cable (15 meters)
o Voltage converter
o Documentation
- Availability: In Stock
- Model: GMR Fantom 124
-
Brand:
