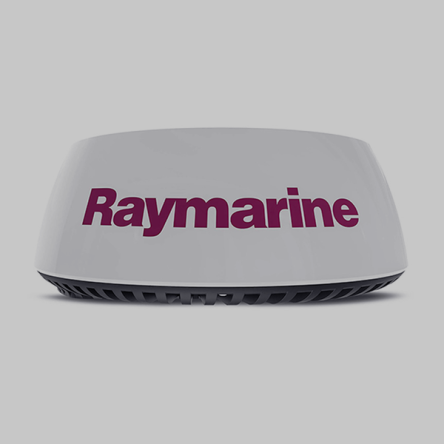

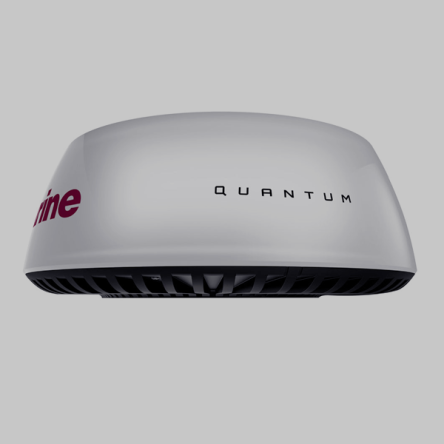

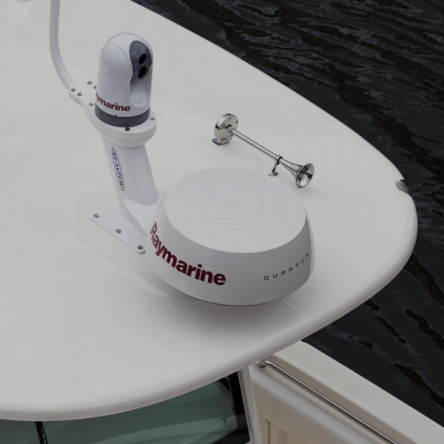

SALE! Raymarine QUANTUM Q24W 18" Radar - NEW

Raymarine Quantum is a compact, high-performance solid-state marine radar featuring CHIRP pulse compression technology. Setting a new standard for radar imaging, Quantum delivers superior radar target recognition on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum’s energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

QUANTUM - CHIRP PULSE COMPRESSION RADAR
Exclusive Raymarine ATX advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality

Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
CHIRP Pulse compression ensures more radar energy reaches each target, resulting in superior imaging on long ranges
Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Immediate Awareness
Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

Simplified Installation
Easy to upgrade.  The same bolt pattern as previous generation radars.
Optional Quantum adapter cable eliminates the need to run new radar cables when upgrading
Quantum’s small diameter power cable is easy to route through tight spaces
Wired or wireless. Quantum features Wi-Fi for connecting wirelessly to Raymarine chartplotter displays.

Energy Efficient and Lightweight
Weighs 50% less than traditional magnetron radars
Safe Emissions thanks to Quantum’s low power solid state radar transmitter
Very low power consumption (17 Watts transmit and 7 watts standby)
Extended vessel battery life when under sail.

FEATURES

o Wi-FI only version allows for a quick, simple installation

o Scanner includes 10m power cable and can utilize existing cables using a separately sold adapter if used as an upgrade

o Provides excellent short-range detection and enhanced target detail with 18’ (6m) minimum range

o Utilizes CHIRP Pulse compression, ensuring more energy reaches each target, resulting in superior imaging on long ranges.

SPECIFICATION:
GENERAL
Dimensions: Diameter | Height
541.0 mm l 209.5 mm

Weight: 5.6 kg
Supply voltage: Either 12 V dc or 24 V dc nominal
Operating voltage range: Minimum: 10.8 V dc | Maximum: 31.2 V dc
Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
Waterproofing: IPX6
Operating temperature range: -10°C to 55°C
Storage temperature range: -25°C to 70°C
Additional storage conditions: Store upright; do not block vents on underside
Humidity: Up to 95% at 35°C
Maximum wind speed: 100 kts
Range scales: 1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles

TRANSMITTER
Type: X-band solid-state transmitter with pulse compression technology
Transmit frequency: 9354 MHz to 9446 MHz
Peak power output: 20W
Duplexer: Circulator
Pulse widths (3 dB): 40 ns to 14.7 us
Chirp lengths: 400 ns to 22 us
Pulse repetition frequency: 920 Hz to 5900 Hz
Chirp bandwidth: Up to 32 MHz
Standby mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link - ON

RECEIVER
IF frequency: 26 MHz
Noise figure: Less than 4 dB

ANTENNA
Type: Patch array
Beamwidth (nominal): Horizontal: 4.9° | Vertical: 20°
Polarization: Horizontal
Rotation speed: 24 rpm nominal

TARGET TRACKING
Target tracking: Tracking of 10 simultaneous Radar targets

TRANSMITTER
Type: X-band solid-state transmitter with pulse compression technology
CHIRP bandwidth: Up to 32 MHz

Standby mode: Scanner rotation - OFF, Scanner transmission - OFF, Wi-Fi link - ON
Duplexer: Circulator
Transmit frequency: 9354 MHz to 9446 MHz
Pulse repitition frequency: 920 Hz to 5900 Hz
CHIRP lengths: 400 ns to 22 µs
Pulse widths (3 dB): 40 ns to 14.7µs
Peak power output: 20 W

ENVIRONMENTAL
Humidity: Up to 95% at 35°C
Additional storage conditions: Store upright; do not block vents on underside
Waterproof rating: IPx6
Storage temperature range: -25°C (-13° F) to 70°C (158° F)
Maximum wind speed: 100 kts
Operating temperature range: -10°C (14° F) to 55°C (131° F)
Range scales: 1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles

TARGET TRACKING
Target tracking: Tracking of 10 simultaneous Radar targets.

CONFORMANCE
Standards (Canada): RSS238 Iss. 1, Technical Acceptance Certificate
Standards (European Union & EFTA): Radio Equipment Directive 2014/53/EU, Certificate of Opinion
Standards (Australia/New Zealand): ACMA Declaration of Conformity, Compliance level 3
Standards (USA): 47CFR FCC Part 2 & Part 80, Certificate of Approval

ANTENNA
Type: Patch Array
Beamwidth (nominal): Horizontal: 4.9°, Vertical: 20°
Polarization: Horizontal
Rotation speed: 24 rpm nominal

RECIEVER
Noise figure: Less than 4 dB
IF frequency: 26 MHz

PHYSICAL
Diameter: 541.0 mm (21.3 in)
Weight: 5.6 kg (12.35 lbs)
Height: 209.5 mm (8.25 in)

IN THE BOX
Quantum Radome
10 m (32.8 ft.) Power cable
M8 mounting bolts with spring washers and flat washers x4
Documentation

• Availability: In Stock
• Model: QUANTUM Q24W 18
• Brand:
