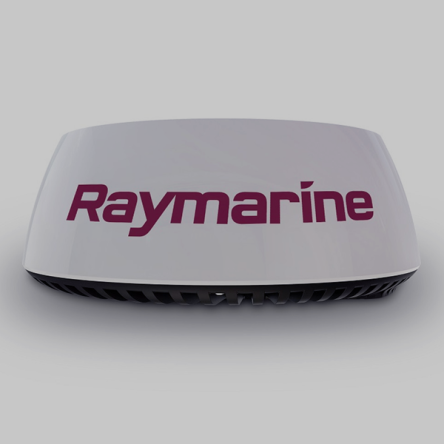

SALE! Raymarine QUANTUM 2 Q24D 18" Doppler Radar - NEW

Raymarine Quantum is a compact, high-performance solid-state marine radar featuring CHIRP pulse compression technology. Setting a new standard for radar imaging, Quantum delivers superior radar target recognition on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum’s energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

QUANTUM 2 WITH DOPPLER COLLISION AVOIDANCE TECHNOLOGY
Keep inexperienced boaters and hidden dangers at bay even in the most congested waterways.
Quantum™ 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound.

FEATURES
Quantum 2 Doppler Radar, perfect for sailboats, RIBs, and smaller powerboats
Available as a standalone scanner with no power or data cable or with 10m and 15m cabling
Provides excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
Simplified, fast installation and can utilize existing Raymarine scanner fixing points
Once installed, Quantum 2 starts right up and immediately provides awareness

SUPERIOR COLLISION AVOIDANCE
Raymarine Quantum 2 Doppler target processing identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.
Quantum 2 MARPA mode provides an effective means of dangerous target tracking and is the same technology trusted by the United States Coast Guard.

SPECIFICATION:
GENERAL
Dimensions: Diameter l Height
541.0 mm l 209.5 mm

Weight: 5.6 kg

Supply voltage
Either 12 V dc or 24 V dc nominal: Minimum: 10.8 V dc | Maximum: 31.2 V dc
Operating voltage range: Minimum: 10.8 V dc l Maximum: 31.2 V dc

Power Consumption
Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
Waterproofing: IPX6
Operating temperature range: -10°C to 55°C
Storage temperature range: -25°C to 70°C
Additional storage conditions: Store upright; do not block vents on underside
Humidity: Up to 95% at 35°C
Maximum wind speed: 100 kts

TRANSMITTER
Type: X-band solid-state transmitter with pulse compression technology
Transmit frequency: 9354 MHz to 9446 MHz
Peak power output: 20W
Duplexer: Circulator
Pulse widths (3 dB): 40 ns to 14.7 us
Chirp lengths: 400 ns to 22 us
Pulse repetition frequency: 920 Hz to 5900 Hz
Chirp bandwidth: Up to 32 MHz
Standby mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link - ON

ANTENNA
Type: Patch array
Beamwidth (nominal): Horizontal: 4.9° | Vertical: 20°
Polarization: Horizontal
Rotation speed: 24 rpm nominal

RECEIVER
IF frequency: 26 MHz
Noise figure: Less than 4 dB

DOPPLER
Target Tracking: Tracking of 25 simultaneous MARPA and / or ARPA targets
Target Filtering: True Motion mode identifies only those objects that are moving relative to the vessel

COMPATIBILITY
Radar Type: Quantum 2 with Doppler
MFD Compatibility: Axiom and Axiom Pro
Perfect for: Sailboats, RIBs, and smaller powerboats
Type: Solid State CHIRP Pulse Compression with Doppler target tracking
Range Performance: 24NM
Performance: Lightweight and easy to install. Excellent short and long range performance. Detect targets as close as 18ft
Automatic Bird Mode: No
MARPA Target Tracking: Yes

RADAR
Transmitter type: X-band solid-state transmitter with pulse compression technology
Target tracking: Track up to 25 simultaneous Radar targets
Standby mode: Rotation: OFF, Transmission: OFF, Wi-Fi: ON

Antenna type: Patch Array
Noise: Less than 4 dB
Beamwidth (nominal): Horizontal: 4.9°, Vertical: 20°
Polarization: Horizontal
Duplexer: Circulator
Transmit frequency: 9354 MHz to 9446 MHz
Pulse repetition frequency: 920 Hz to 5900 Hz
CHIRP lengths: 400 ns to 22 µs
Pulse widths (3 dB): 40 ns to 14.7µs
IF frequency: 26 MHz
Rotation speed: 24 RPM
Peak power output: 20 W

CONFORMANCE
Standards: USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3

ENVIRONMENTAL
Relative humidity: Up to 95% @ 35°C (95°F)
Additional storage conditions: Store upright; do not block vents on underside
Waterproof rating: IPx6
Storage temperature: -25°C to 70°C (-13°F to 158°F)
Maximum wind speed: 100 knots
Operating temperature: -10°C to 55°C (14°F to 131°F)

PHYSICAL
Dimensions: Height: 209.5 mm (8.25 in), Diameter: 541.0 mm (21.3 in)
Weight: 5.6 kg (12.35 lbs)

IN THE BOX:
Radome
Power cable 10 m (32.8 ft)
Fixing bolts with spring washers and flat washers (M8) x 4
Documentation
