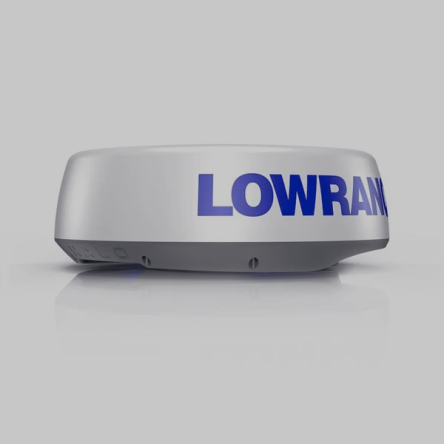

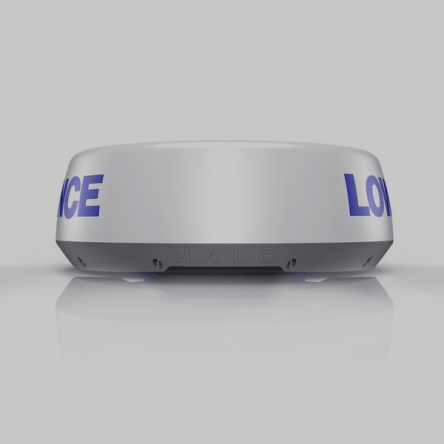

SALE! Lowrance HALO24 Plus Radar - NEW
Lowrance
HALO24 revolutionizes radar by offering an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance.
1,043.81€
1,589.20€
Our most revolutionary radar to date, HALO24 offers a second by second view around your boat. Velocity Track ™ Doppler technology provides instantaneous hazard identification at short range while long range coverage – up to 48 nautical miles – lets you keep an eye on the weather up ahead.
WELCOME TO HALO24
HALO24 revolutionizes radar by offering an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack Doppler technology, and enjoy simultaneous short and long-range coverage-up to 48 nautical miles-from one compact 24-inch dome antenna.
SEE NEAR AND FAR WITH ONE COMPACT DOME
Perfect for a wide range of coastal bay boats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
THE ULTIMATE VIEW FOR COLLISION AVOIDANCE
HALO24 radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance.
VELOCITYTRACK DOPPLER TECHNOLOGY BUILT-IN
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. HALO24 radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
READY WHEN YOU ARE
HALO24 radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO24 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO24 radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.
KEY FEATURES
o 48 nm range from a compact 24-inch dome
o Advanced pulse compression technology with beam sharpening
o Simultaneous Dual Range operation sees both near and far
o Ultra-fast 60 RPM operation at ranges up to 1.5 nm
o VelocityTrack™ Doppler technology for collision avoidance
o Easy operation with harbour, offshore, weather, and bird modes
o MARPA target tracking (up to 10 targets, 20 in dual range)
o Ready instantly from standby
SPECIFICATIONS:
Connectivity
Ethernet Ports: 100 Base T
Approvals
Approvals Compliance: FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
Electrical
Power Consumption max: 29W
Power Consumption typical: 20W
Recommended Fuse Rating: 5A
Supply Voltage: 10.5 - 31.2 VDC (12/24V systems)
Environment
Humidity: 95% RH at 35°C (95°F)
Operating Temperature Range: -25° to + 55°C (-13° to +130°F)
Waterproofrating: IPX6
Physical
Dimensions W x H x D: 610mm dia x 225 mm H. (24" dia x 8.9" H)
Weight: 6.75 kg (14.9 lbs) without cable
Radar
Beam width: 3.9° H nonminal (-3dB) 2° with target separation on high x 22° V
Max Range, scale: 48 NM
Max Wind Speed: 100 knots (51 m/s)
Min Range, scale: 50 m / 200 ft / 50 yd
Radar Modes: Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion
Radar Technology: Pulse Compression
Rotation speed: Up to 60 RPM (Range Dependent)
Other
Interface: Lowrance MFD
Warranty Period: 2 Years
IN THE BOX:
Cable, RJ45 to 5 Pin,1.5m
Rj45 Waterproofing Boot
5m Cable for Halo Dome Radar/Nemesis™
Lowrance warranty card-service & support
Halo24,Unbranded Dome
Brand-Decal-Lowrance
- Availability: In Stock
- Model: HALO24 Plus
-
Brand:
