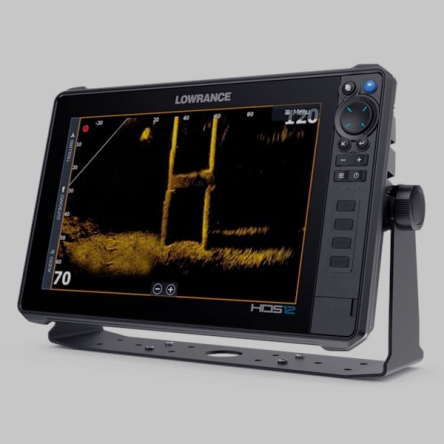

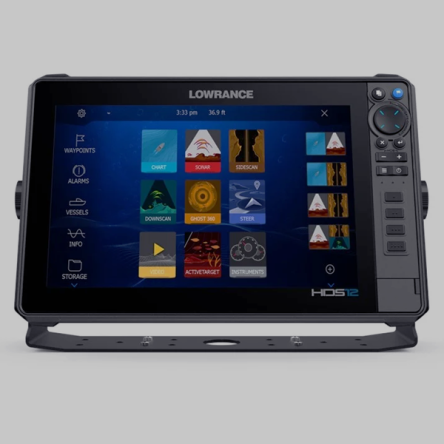

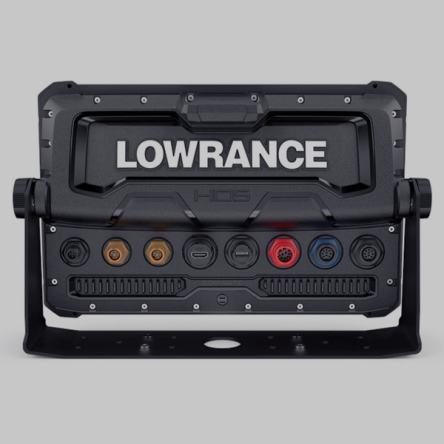

SALE! Lowrance HDS PRO 12 with Active Imaging HD - NEW

See more and catch more with the new HDS PRO fishfinder/chartplotter. Watch fish react to your lure live with new, high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with new, ultra high-definition Active Imaging™ HD. Quickly find fishing areas with the latest and most detailed C-MAP charts and get full fishing system networking with expanded boat control from bow to stern.

KEY FEATURES

o SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses

o New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)

o New! High-resolution ActiveTarget 2 Live Sonar ready

o FishReveal™ with new SideScan view, as well as Downscan*

o Available in 9, 10, 12 and 16-inch display size

o Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000 US Lakes, 9,400 Canadian Lakes or worldwide basemap

o Real-time mapping available with C-MAP® Genesis Live.

o Support for new ActiveTarget Scout and Ghost® Trolling Motor 360 chart overlay views

o Large programmable keys for 10, 12 and 16-inch sizes

o Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot

o NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications

o Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

o *SidescanFishReveal requires S3100 module and a compatible transducer

See more and catch more with the new HDS® Pro, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget® 2 Live Sonar and new, ultra high-definition Active Imaging™ HD. Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™. FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module) ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget® systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.

The better your view, the better your fishing. From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS® Pro delivers a full range of meaningful underwater views that will take your fishing experience from good to great. The SolarMAX™ HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses — a real difference maker on the water. See unmatched clarity on-screen with Lowrance’s superior, high-resolution Active Imaging™ HD sonar and ActiveTarget 2 Live Sonar technologies.

Spend more time catching fish and less time finding them with pre-loaded C-MAP® charts. Get full-featured vector charts, custom depth shading, high-res coastal coverage and 1-foot contours on more than 19,000 lakes across the U.S. and more than 9,400 in Canada. HDS® Pro also introduces a new chart overlay option, allowing you to view ActiveTarget® Scout Mode or Ghost® 360 trolling motor mode directly on the chart screen. For anglers that want to select their own chart, HDS PRO supports a wide range of third-party chart options, including C-MAP, Navionics®, Florida Marine Tracks and more.

HDS PRO gives you full bow-to-stern networking and expanded control of the Ultimate Fishing System, including new Ghost® Trolling Motor features like Ghost 360, Orbit Waypoint and Anchor at a Distance. With HDS® Pro at the heart of your fishing system, it’s easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options. HDS® PRO offers support for the complete range of top fish-finding technologies — from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Power-Pole® Anchors, Ghost® Trolling Motor and more. Expand your system -- taking advantage of radar, autopilot and NMEA 2000® compatibility -- and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.

The expanded options and capabilities of HDS® Pro give you more ways to customize your boat to better fit your fishing needs. Beyond the 9, 10, 12 and 16-inch screen sizes, HDS® Pro can also be expanded to deliver additional views and features. Simply add an S3100 sonar module and Active Imaging™ Transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat. Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget 2 live sonar displays at the same time. With plug-and-play installation, expanding your fishing has never been easier.

SPECIFICATIONS
Display
Backlight Color: Pure White LED
Display Resolution: 1280 x 800
Screen Brightness: >1200 Nits
Viewing Angles: 80° top/bottom, 80° left/right

Electrical
Power Consumption max: 3.6A @ 13VDC with Full Backlight, Sonar on
Power Consumption min: 2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical: 2.3A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating: 5A
Supply Voltage: 12 v DC (10.8-17 V DC)

Physical
Dimensions: W x H x D 13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm)
Weight: 6.5lb (2.95kg)
Compass Safe: 1.6 ft (50 cm)
Mounting Type: Panel mount or bracket mount

Environment
Humidity: 60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Shock Vibration: 100,000 cycles of 20 G
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
Waterproof rating: IPX7 with card door closed

Interface
Touchscreen: Full Multi-touch touchscreen
Keypad: 8-way directional keypad
User programable keys: 4
Buttons: Zoom /-, Exit, Enter, Menu, Waypoint, Power / Light

Connectivity
Bluetooth: Bluetooth® 5.2 with support for Bluetooth® classic
Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
Connectivity Wi Fi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000: 1x Micro-C
SD Card Storage: via Power cable

Video
Output: None
Composite video: 1 xRCA - single channel via an optional adaptor cable
HDMI: 1 port for external input (HDMI® 1.4 sink and HDCP)

GPS
Correction: DGPS, WAAS
GPS Receiver Channels: 16
Position Accuracy: 20m RMS
Time to First Fix: 30s
Update rate: 10 Hz

MFD
Sonar Compatibility: Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
Radar: All HALO Radars
Weather: SiriusXM via WM-4 (USA only)
AIS: AIS Chart and Radar overlay. Target vessel details.
Autopilot: NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital Switching: CZone, Naviop, DDS
GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage: 8.0 GB Internal
Multimedia: SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power: 1kW
Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5: Support for third part HTML apps
Autopilot Maneuvers Turn Patterns: Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes: Course, Heading, Waypoint, Power Steer

IN THE BOX:

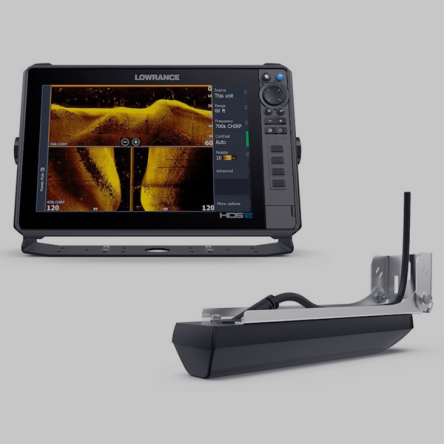

HDS12 Pro Display
Lowrance Power/0183 Cable
HDS-12 LIVE/PRO Bracket and Knobs
HDS-12 LIVE/PRO Suncover
DISCOVER - NORTH AMERICA
ActiveImaging™ HD 3-in-1 Transducer

• Availability: In Stock
• Model: HDS PRO 12
• Brand:
