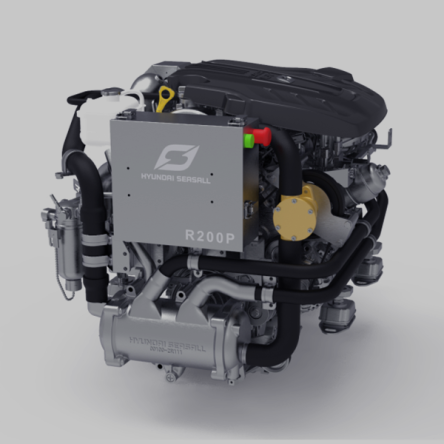

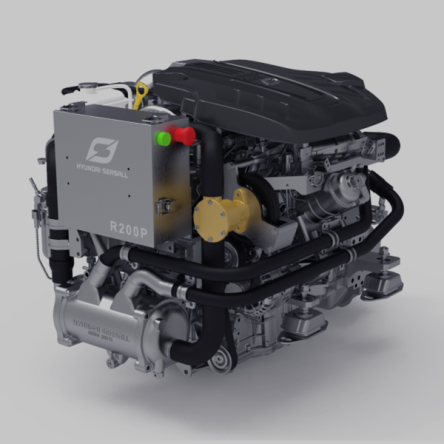

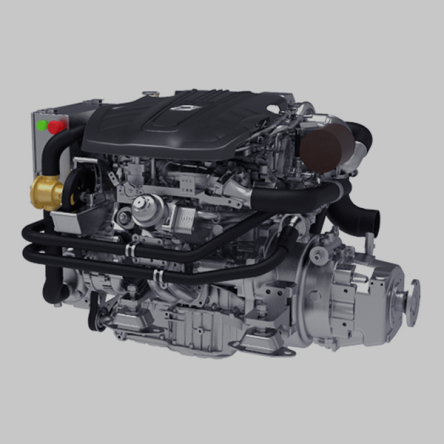

SALE! Hyundai Seasall R200 Diesel Engine Bravo II X - NEW

The common rail multiple injection features make the In-line 4 R-series more environmentally friendly by minimizing the emissions of particulates and NOx.
The designs optimize fuel injection and intake porting to improve combustion performance, particularly low-temperature combustion stability through lean air-fuel rationing. This ensures that we satisfy the world’s strictest exhaust emission standards while providing the smooth, quiet and efficient power for which Hyundai SeasAll is becoming known.

Engine

·   Cast iron engine cylinder block

·   Aluminum head

·   Oil cooled pistons

·   In-line 4, 16-valve DOHC

·   Hydraulic lash adjusters

·   Intergated water jacket

·   Balance shaft

·   Drive belt auto tensioner

·   Single serpentine belt system

·   Drive belt auto tensioner

Engine Mounting

·   Adjustable engine mounts

Lubrication System

·   Electric oil extraction pump

·   Easily exchangeable oil filter cartridge

·   Seawater cooled transmission oil cooler

Noise Level

·   69.0dB (RCD Standard 75dB)

Fuel System

·   Common Rail Direct Injection (CRDi)-New

Solenoid injector with 2,000 bar

·   Fuel filter with sensor detecting water in fuel

·   Electric low preassure pump

·   Dual pressure control valve

·   Low and high pressure fuel pumps

Electrical System

·   12 volt system and 150A alternator

·   Auxiliary engine stop button

·   Glow plugs for a trouble-free cold start

·   NMEA2000 Converter (Optional)

·   Electronic control system (Optional)

Cooling System

·   Seawater pump driven from V-ribbed belt

·   Seawater cooled intercooler, heat exchanger

·   Auxiliary connector for cabin heater

·   Corrosion resistant material for the seawater circuit

Turbocharger

·   E-VGT, Electrical Variable Geometry Turbocharger

Engine Operating Indicator (EOI)

·   Engine self protection and diagnosis

·   Displays CAN information

·   Displays engine diagnostic error codes

·   Audible alarm and control lamps

Air Inlet system

·   Oil wetted and reusable air filter

·   Crankcase gas vented into the air inlet

Exhaust System

·   Engine coolant cooled exhaust manifold

·   Seawater cooled exhaust elbow

Emissions

·   IMO NOx Tier 2 and EU RCD compliant

• Availability: In Stock
• Model: R200 Bravo II X
